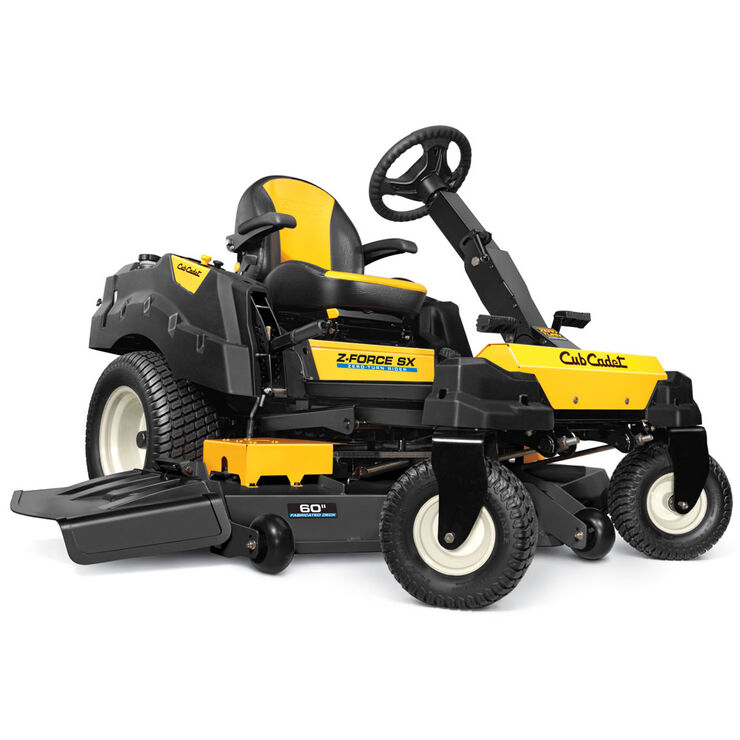

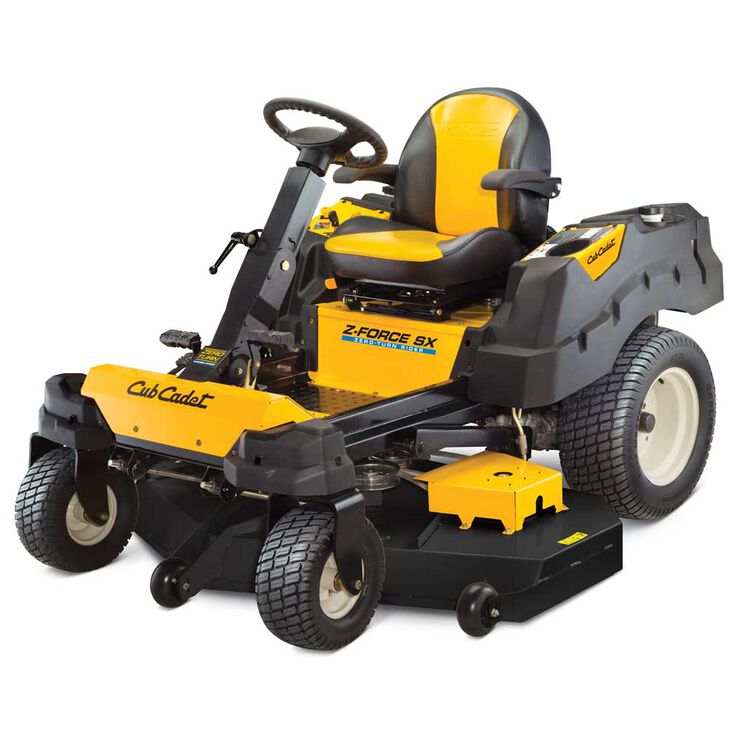

Z-Force SX 60
Z-Force® S/SX Series
Item#:
47RIDGJD010
MSRP
Z-Force SX 60
Z-Force® S/SX Series
Item#:
47RIDGJD010
Documents and Guides
- 24 HP professional-grade Kawasaki® FR® Series V-Twin OHV engine
- Heavy-duty welded steel frame
- 60" triple-blade cutting system
eDealerList : [{"dealerID":"13904","eDealerProximity":15.7,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"6156","eDealerProximity":20.8,"deliveryRadius":"0,499.99,39,10|500,999.99,89,20|1000,1999.99,129,40|2000,2499.99,149,60|2500,4999.99,149,60|5000,999999,149,60"},{"dealerID":"13913","eDealerProximity":25.6,"deliveryRadius":"0,499.99,39,10|500,999.99,89,25|1000,1999.99,129,30|2000,2499.99,149,40|2500,4999.99,149,40|5000,999999,149,40"}]
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
eDealerList : [{"dealerID":"13904","eDealerProximity":15.7,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"6156","eDealerProximity":20.8,"deliveryRadius":"0,499.99,39,10|500,999.99,89,20|1000,1999.99,129,40|2000,2499.99,149,60|2500,4999.99,149,60|5000,999999,149,60"},{"dealerID":"13913","eDealerProximity":25.6,"deliveryRadius":"0,499.99,39,10|500,999.99,89,25|1000,1999.99,129,30|2000,2499.99,149,40|2500,4999.99,149,40|5000,999999,149,40"}]
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FR Series
- Engine Model Number 730V
- Engine Displacement 726cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity Dual 2.8 gal. US (10.6 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead-Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 3100
- Forward Speed 8 MPH
- Reverse Speed 4 MPH
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash Yes
- Deck Material 11-gauge steel w/ 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Hand lever with spring-assist
- Cutting Height Range 1" - 5"
- Anti-Scalping Two gauge wheels
- Deck Positions 15
Chassis
- Frame 12-gauge reinforced one-piece, full-length steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control Yes
- Steering Control Steering Wheel
Comfort
- Seat Type 20" high back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 22"x 9.5" -12"
- Front Tires 13"x 6.5"-6"
Specifications
- Series Z-Force® S/SX Series
Additional Specifications
- Hour Meter Yes
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Foot Operated
- Model Number 47RIDGJD010
Warranty
- Residential Warranty 4-year 500 hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty 4-year limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 47RIDGJD010 | MANL:OPER:ENGL:ZFS-SX | ||
| MANL:OPER:ENGL:ZFS-SX | 769-17374 | Download | |
| MANL:OPER:ENGL:ZFS-SX | 769-17374B | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZFSX | 769-24870 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZFSX | 769-24870A | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZFSX | 769-24870B | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZFSX | 769-24870C | Download |
