PRO Z 760 L
PRO Z 700 L SERIES
Item#:
53FIHTTV050

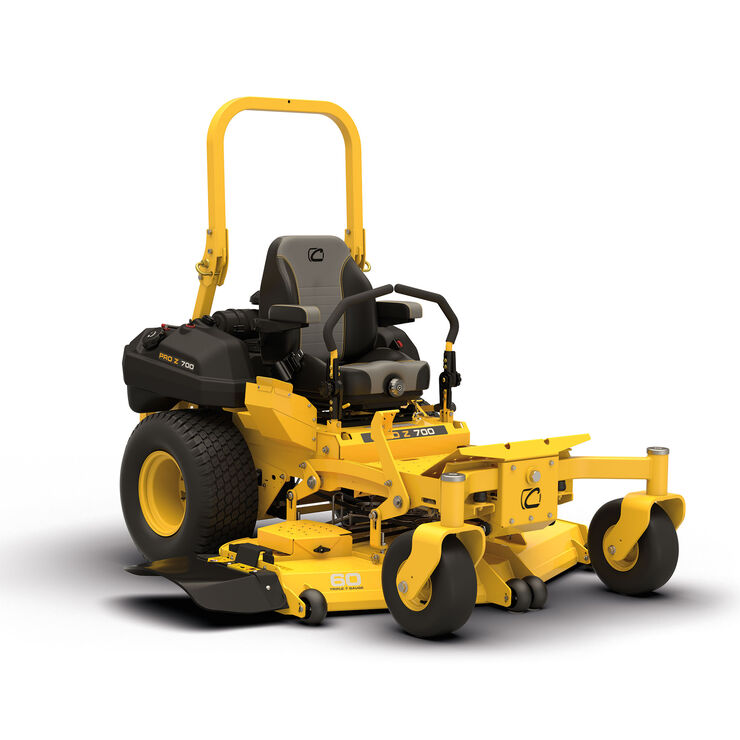

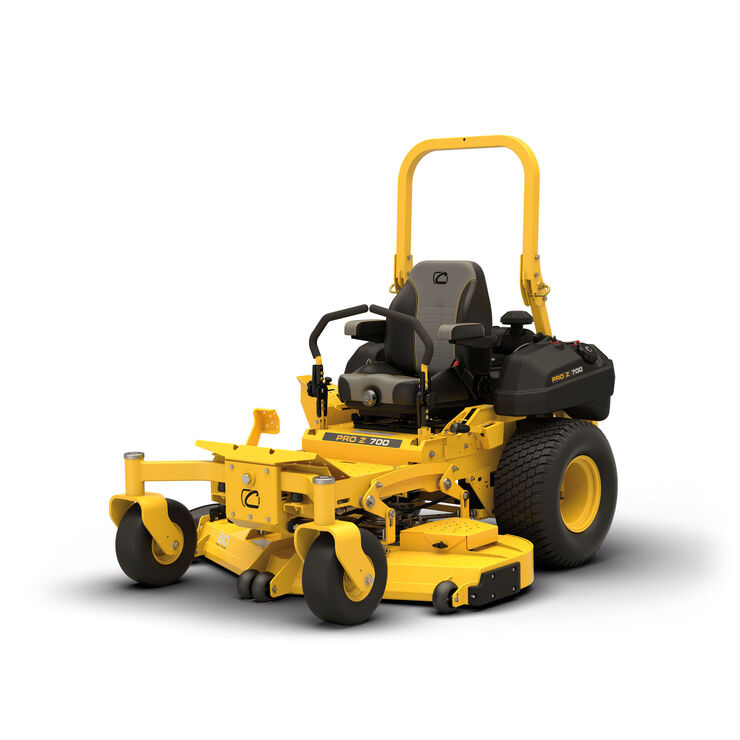

The Cub Cadet® PRO Z 760 L 60-in. 31 HP* Commercial Zero-Turn Lawn Mower features a triple 7-gauge fabricated steel cutting deck with top and bottom reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Hydro-gear transmissions engineered for quick ground speeds and smooth handling.
- 31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear transmission
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
PRO Z 760 L Features
Less Maintenance, Less Downtime
Maintenance-free spindles and pulleys deliver peak performance with limited downtime.
Decks Built to Last
Tackle the toughest conditions with a triple-7-gauge steel cutting deck: a 7-gauge deck shell with 7-gauge top and bottom reinforcements.
Nationwide Support
3-year, no-hour-limit commercial warranty and/or 5-Year 1,200 Hour Residential warranty and a nationwide network of Cub Cadet dealers.
Control Your Own Way.
Whether you prefer our custom lap bar designs or our innovative steering options, the PRO Z lineup offers you great control to match your crew’s needs.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 921V
- Engine Displacement 999cc
- Engine Output 31HP
- Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Choke Separate Choke
- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Carburetor
Drive System
- Transmission 12cc Hydro-Gear 4400
- Forward Speed 12 mph / 19 km/h
- Reverse Speed 6 mph / 9.5 km/h
Cutting Deck
- Deck Cutting Width 60 in
- Deck Material fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO) electronic fingertip engagement pto
- Deck Construction 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction 8" sealed cast aluminum housing (maintenance-free)
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range 1” to 5” in 1/4” increments
- Anti-Scalping 2 front deck gauge wheels
- Deck Positions Foot pedal with spring assist 16 Positions
Chassis
- Frame Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- Front Axle 2" x 3" solid axle tube with ISO dampening suspension
- ROPS 2" x 2" spring-latch tool-less foldable 3 position
- Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes 1/2" thick steel front yokes
Controls
- Cruise Control NA
- Brakes Hand-operated lever with integrated hydro pump release lever
- Steering Control High Performance & Speed Control
Comfort
- Seat Type Cushion with seat belts
- Armrests Padded arm rests
- Seat Suspension High-back dial suspension with EVC, ISO mounted base (lateral suspension)
- Seat Adjustment Angle back adjust and lumbar support
Wheels
- Rear Tires 24"x12"-12"
- Front Tires 13"x6.5"-6"Reliance Carlisle run-flat
- Tire Tread Turf Tread
Dimensions
- Weight (approx.) 1424 lbs.
Additional Specifications
- Hour Meter Crew Boss
- Discharge Chute High-density, impact-resistant rubber
- Cup Holder Intergrated into Side Pod
- Model Number 53FIHTTV050
Warranty
- Residential Warranty 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
- Commercial Warranty 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
