1. Lawn Mowers
  2. Riding Lawn Mowers
  3. Ultima ZTXS- Zero-Turn Mowers
  4. ZTXS4 60

ZTXS4 60

Ultima Series™ ZTXS
From $7,999.00 MSRP
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
ZTXS4 60
Ultima Series™ ZTXS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
From $7,999.00 MSRP
Or
$151/mo8 | 3.99% APR | 60Mo with $150 Promo Fee. Total: $9,060.00
Apply Now

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

  • Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
  • A 26 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
  • Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
  • A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
  • Zero-Turn Mower
eDealerList : [{"dealerID":"13866","eDealerProximity":10.787286490773992,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":21.06300213705045,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":24.753535640035313,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Delivery
$149
Arrives in 2-3 days
Local Pickup
From $49
Available in 1-2 days
Marker
Delivering to: 43215 Pick up at:
premium Service Image
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
eDealerList : [{"dealerID":"13866","eDealerProximity":10.787286490773992,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":21.06300213705045,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":24.753535640035313,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Delivery
$149
Arrives in 2-3 days
Local Pickup
From $49
Available in 1-2 days
Marker
Delivering to: 43215 Pick up at:
premium Service Image
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.

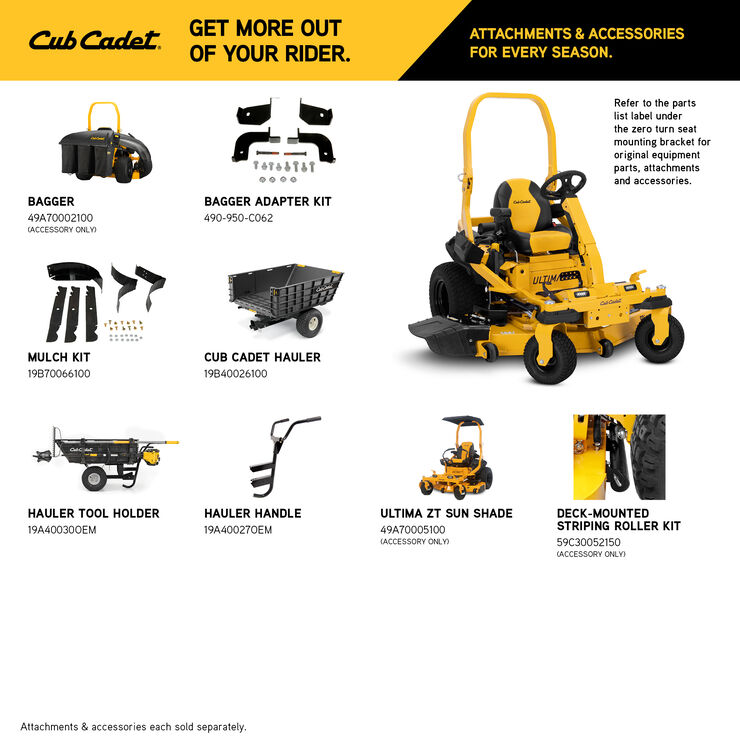

Attachments & Accessories

Xtreme® Mulching Kit for 60-inch Decks
Xtreme® Mulching Kit for 60-inch Decks
Item#: 19B70066100
From $230.99 MSRP
Triple Bagger for 54- and 60-inch Decks
Triple Bagger for 54- and 60-inch Decks
Item#: 49A70002100
From $924.99 MSRP
Ultima Series™ ZTS and ZTXS Bagger Mounting Kit
Ultima Series™ ZTS and ZTXS Bagger Mounting Kit
Item#: 490-950-C062
From $49.99 MSRP
Kohler 7000 Series PRO, 7500 Series EFI Maintenance Kit
Kohler 7000 Series PRO, 7500 Series EFI Maintenance Kit
Item#: KH-32-789-03-S
From $79.99 MSRP
Heavy Duty Lawn Striping Kit
Heavy Duty Lawn Striping Kit
Item#: 59C30052150
From $244.99 MSRP
Cub Cadet Hauler
Cub Cadet Hauler
Item#: 19B40026100
From $399.99 MSRP
Sun Shade
Sun Shade
Item#: 49A70005100
From $269.99 MSRP
Lawn Tractor and Zero-Turn Mower Cover
Lawn Tractor and Zero-Turn Mower Cover
Item#: 490-290-C020
From $79.99 MSRP

ZTXS4 60 Features

Excellent Stability On Hills

ztxs-stability-on-hills

Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees

Premium Cut

aeroforce-fabricated-cutting-deck

AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.

Strong, Durable Frame

ztxs-tubular-steel-frame

A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear

Turf Master® Tires

carlisle-turf-master-tires

Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.

Ride In Comfort

ztxs-adjustable-steering

SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.

Customize Your Machine

ztxs-attachments

Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).

Easy Maintenance

ztxs-easy-maintenance

An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance

Strong Warranty

ztxs-4-year-warranty

4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind

man-riding-ztxs4-zero-turn

Specs & Maintenance

Engine
  • Engine Brand Kohler®
  • Engine Model Pro 7000 series
  • Engine Model Number KT745
  • Engine Displacement 747cc
  • Engine Output 26HP
  • Starter Type Electric
  • Fuel Tank Capacity 5.5 gal. US (20.82 L)
  • Cylinders Twin
  • Engine Start Ignition Key
  • Engine Oil Capacity 2.0 qt. US (1.89 L)
  • Lubrication Fully pressurized
  • Charging System 12 amp regulated
  • Fuel Gauge Yes
  • Governor Mechanical
  • Choke Choke-a-matic
  • Air Filter Dual element
  • Oil Filter Yes
  • Fuel Delivery Carburetor
Battery
  • Battery 210 CCA
  • Battery Type AGM (Absorbent Glass Mat)
  • Battery Voltage 12V
Drive System
  • Transmission Hydro-Gear ZT 3100
  • Forward Speed 8 MPH /12.9 km/h
  • Reverse Speed 3.5 MPH / 5.6 km/h
  • Drive System Hydrostatic
Cutting Deck
  • Deck Cutting Width 60 in
  • Deck Wash No
  • Deck Material 10-gauge steel with 2-gauge reinforcement
  • Deck Engagement (PTO) Electric
  • Deck Construction Fabricated
  • Blade(s) Three
  • Deck Lift Foot pedal with Dial Adjust
  • Cutting Height Range 1" - 4.75"
  • Anti-Scalping Three gauge wheels
  • Deck Positions 17
Chassis
  • Frame 1.5" x 3" tubular steel
  • Turning Radius 0°
  • ROPS Yes
  • Rear Tow Hitch Yes
  • Corrosion Protection Yes
Controls
  • Cruise Control No
  • Brakes Disc
  • Steering Control Steering Wheel
Comfort
  • Seat Type 20" high back
  • Armrests Yes
  • Seat Adjustment Lever
  • Front Caster Suspension No
Wheels
  • Rear Tires 22"x 12"-12"
  • Front Tires 13"x 6.5"-6"
  • Tire Tread Turf Master / Multi Trac
Specifications
  • Series Ultima Series™ ZTXS
Additional Specifications
  • Hour Meter Yes
  • Mulch Kit Available separately
  • Headlight(s) Dual-LED
  • Cup Holder Yes
  • Operator Presence System Yes
  • Parking Brake Foot Controlled
  • Model Number 47TSCAB8A10
Warranty
  • Residential Warranty 4-year 800 hours
  • Frame Warranty Lifetime Limited
  • Deck Shell Warranty Lifetime limited
  • Commercial Warranty 4-year 800 hours
Disclaimers
  • Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
  • Horsepower As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
Manuals
Model
Manual
Form Number
47TSCAB8A10 MANL:OPER:TRI:ZTXS
MANL:OPER:TRI:ZTXS 769-26660A Download
MANL:OPER:TRI:ZTXS 769-27012 Download
SHEET:SAFETYSYMBOL:ZTXS 769-26858 Download
SHEET:SUP:BILING:EPA:EVP:22-23 769-26607 Download
SHEET:SUP:Warranty_Addendum_In 769-26830 Download
SHEET:SUPP:WARR/PARTS:ENG/SP/F 769-26696A Download
SHEET:SUPP:WARR/PARTS:ENG/SP/F 769-26932 Download
SHEET:SUPP:WARR/PARTS:ENG/SP/F 769-26932A Download
