ZT1 46
Ultima Series™ ZT
Item#:
17AIEACNA10
From
$3,499.00
MSRP
ZT1 46
Ultima Series™ ZT
Item#:
17AIEACNA10
From
$3,499.00
MSRP

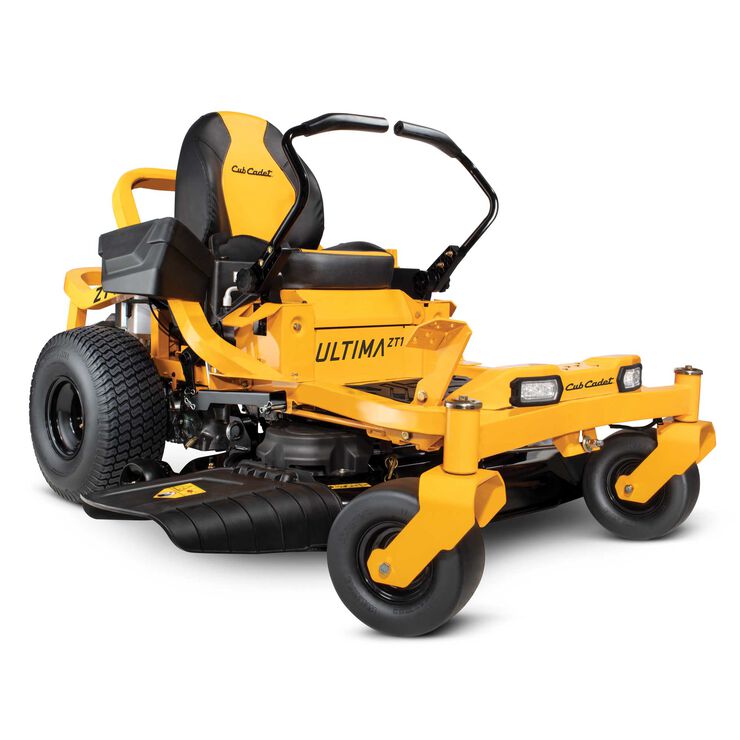

The Cub Cadet® Ultima Series ZT1 46 is a 46-inch zero-turn lawn mower with a 21.5 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.
- A 21.5 HP*/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
- A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
eDealerList : null
eDealerList : null

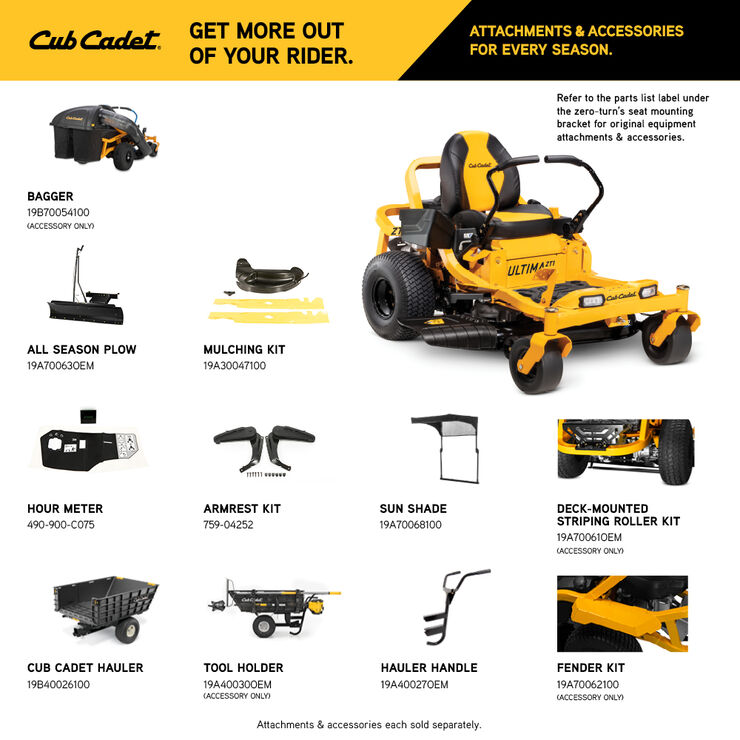

Attachments & Accessories
ZT1 46 Features
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
Redefining Comfort
Settle into a fully adjustable command center and experience comfort designed to give you speed and control.
AeroForce Deck™
The AeroForce™ fabricated deck is engineered to deliver a premium cut with minimal clumps, fine clips and evenness.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FR Series
- Engine Model Number 651V
- Engine Displacement 726cc
- Engine Output 21.5HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear EZT 2200
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 46 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 2
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 2 gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 20" high back
- Armrests No
- Seat Adjustment Knob
- Front Caster Suspension No
Wheels
- Rear Tires 20”x 8”-8"
- Front Tires 11"x 6"-5"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZT
Additional Specifications
- Hour Meter Available Separately
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17AIEACNA10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn

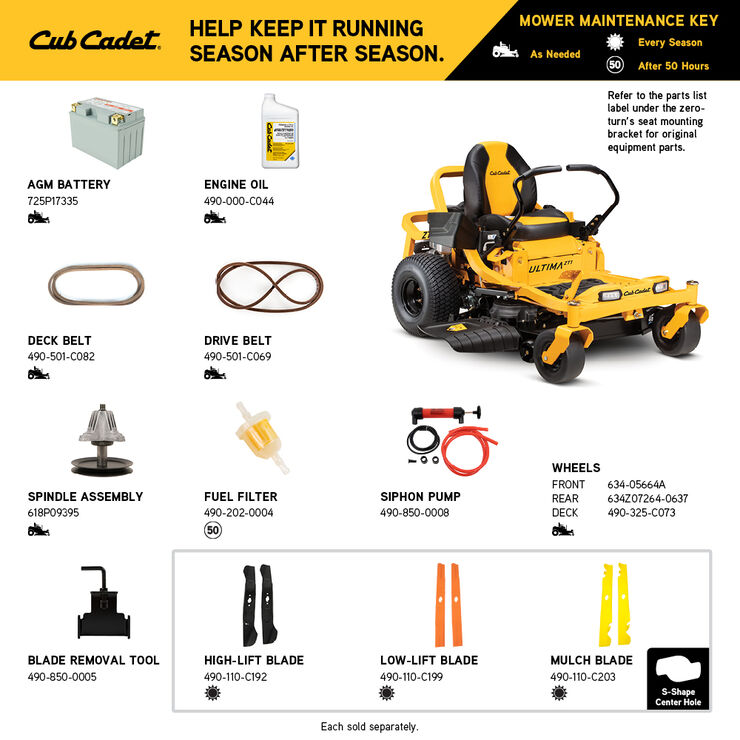

Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 17AIEACNA10 | MANL:OPER:TRILING:RZ19:DIGEST | ||
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504A | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26861 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000A | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26636B | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26897 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-27005 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-27005A | Download |
