ZTS1 50
Ultima Series™ ZTS
Item#:
17BRGBYLA10
2025
From
$4,899.00
MSRP
2025
ZTS1 50
Ultima Series™ ZTS
Item#:
17BRGBYLA10
From
$4,899.00
MSRP
The Cub Cadet® Ultima Series ZTS1 50 is a 50-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ fabricated deck and Synchro-Steer™ technology, which helps deliver a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology provides 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees. The mower also has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
- A 24 HP*/747cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
- 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
eDealerList : [{"dealerID":"6374","eDealerProximity":4.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,10|1000,1999.99,129,15|2000,2499.99,149,20|2500,4999.99,149,20|5000,999999,149,20"},{"dealerID":"2891","eDealerProximity":41.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,20|1000,1999.99,129,30|2000,2499.99,149,30|2500,4999.99,149,30|5000,999999,149,30"},{"dealerID":"8586","eDealerProximity":78.1,"deliveryRadius":"0,499.99,39,15|500,999.99,89,30|1000,1999.99,129,40|2000,2499.99,149,50|2500,4999.99,149,50|5000,999999,149,50"}]
Delivering to:
46131
Pick up at:
(317) 738-4440
Your Dealer
Jacobi Sales, Inc. - STORE #6374
550 EARLYWOOD DRIVE,
FRANKLIN, IN 46131
(317) 738-4440
Hours of Operations
- Sunday CLOSED - CLOSED
- Monday 8:00 AM - 5:00 PM
- Tuesday 8:00 AM - 5:00 PM
- Wednesday 8:00 AM - 5:00 PM
- Thursday 8:00 AM - 5:00 PM
- Friday 8:00 AM - 5:00 PM
- Saturday 8:00 AM - 12:00 PM
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
eDealerList : [{"dealerID":"6374","eDealerProximity":4.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,10|1000,1999.99,129,15|2000,2499.99,149,20|2500,4999.99,149,20|5000,999999,149,20"},{"dealerID":"2891","eDealerProximity":41.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,20|1000,1999.99,129,30|2000,2499.99,149,30|2500,4999.99,149,30|5000,999999,149,30"},{"dealerID":"8586","eDealerProximity":78.1,"deliveryRadius":"0,499.99,39,15|500,999.99,89,30|1000,1999.99,129,40|2000,2499.99,149,50|2500,4999.99,149,50|5000,999999,149,50"}]
Delivering to:
46131
Pick up at:
(317) 738-4440
Your Dealer
Jacobi Sales, Inc. - STORE #6374
550 EARLYWOOD DRIVE,
FRANKLIN, IN 46131
(317) 738-4440
Hours of Operations
- Sunday CLOSED - CLOSED
- Monday 8:00 AM - 5:00 PM
- Tuesday 8:00 AM - 5:00 PM
- Wednesday 8:00 AM - 5:00 PM
- Thursday 8:00 AM - 5:00 PM
- Friday 8:00 AM - 5:00 PM
- Saturday 8:00 AM - 12:00 PM
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
Attachments & Accessories
ZTS1 50 Features
Powerful Engine
A Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation.

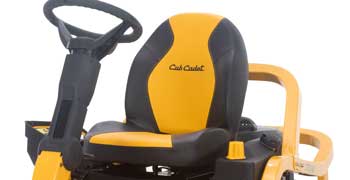

Premium Seating
Fully adjustable premium 20-in. high-back seat with an advanced polymer seat isolators deliver a smoother, quieter ride on any terrain.
All-Around Comfort
Settle into a fully adjustable command center with a tilted steering column and adjustable seat that allows for you to mow comfortably at your top speed.
Dual-LED Headlights
Headlights provide ultimate vision for mowing in low light conditions.
One-Hand Operation
Synchro-Steer™ technology allows you to operate your Ultima ZTS with one hand while still mowing in a straight line for an even, consistent cut.
Stability on Hills
Synchro-Steer™ technology delivers unrivaled control and handling of all four wheels, even on hills and slopes of up to 20°.
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear.
Versatile
Unlock the full potential of your Ultima ZTS with a variety of attachments and accessories.
Full Control
13 in. front / 20 in. rear Turf Master® 4-ply tires minimize turf damage and provide greater traction and stability on 20° hills.
AeroForce™ Deck
Fully fabricated deck delivers a best-in-class cut with fewer clumps and stragglers, finer clippings and increased evenness.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck shell warranty.
Striping Made Easy
The Synchro Steer™ technology provides enhanced precision and control that will help you continually achieve a pristine cut on the most delicate turf to the most challenging terrain.
Cut Comfortably
Soft-touch steering wheel and a vibration-dampening rubber floor mat provides sure footing and maximum comfort.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT724
- Engine Displacement 747cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear EZT 2200
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 50 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
Comfort
- Seat Type 20" high back
- Armrests No
- Seat Adjustment Lever
- Front Caster Suspension No
Wheels
- Rear Tires 20”x 10”-8"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZTS
Additional Specifications
- Hour Meter Available Separately
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Hand Lever
- Model Number 17BRGBYLA10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime Limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 17BRGBYLA10 | MANL:OPER:TRILING:ULTIMAZTS:DI | ||
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-26506A | Download | |
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-26931 | Download | |
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-27013 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZTS1/ | 769-26645A | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZTS1/ | 769-26901 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZTS1/ | 769-26901A | Download |
