ZTX4 54
Ultima Series ZTX
Item#:
47TSAAA7A10
New For 2024
From
$6,799.00
MSRP
New For 2024
ZTX4 54
Ultima Series ZTX
Item#:
47TSAAA7A10
From
$6,799.00
MSRP
The Cub Cadet® Ultima Series ZTX4 54 54-in. 26 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
- 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
- Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
- A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
- 54 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provides flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut
- Zero-Turn Mower
You're shopping available inventory from
Vernon Dell Tractor
2871 BROADWAY,
GROVE CITY,
OH
43123
Delivering to:
43215
|
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days

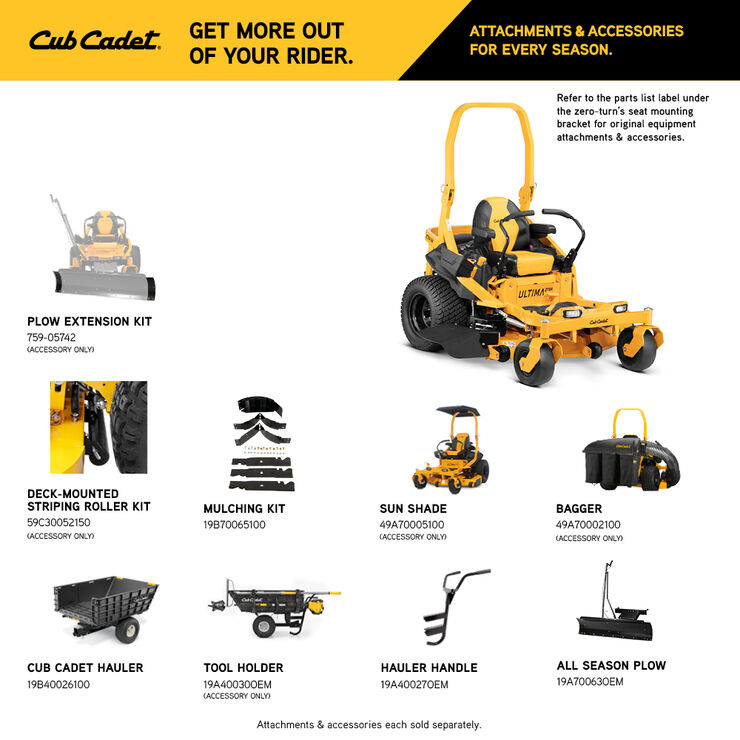

Attachments & Accessories
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
ZTX4 54 Features
Kohler 7000 Series PRO Engine
Smoother operation, better acceleration and seamless recovery powered by a reliable twin-cylinder Kohler engine.
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Hydro-Gear™ ZT 3100 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
High-Back Seat
A 20” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model Pro 7000 series
- Engine Model Number KT745
- Engine Displacement 747cc
- Engine Output 26HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 gal. US (20.82 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 3100
- Forward Speed 8 MPH /12.9 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping Three gauge wheels
- Deck Positions 17
Chassis
- Frame 1.5" x 3" tubular steel
- Turning Radius 0°
- ROPS Yes
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 20" high back
- Armrests Yes
- Seat Adjustment Lever
- Front Caster Suspension No
Wheels
- Rear Tires 22"x 12"-12"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZTX
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 47TSAAA7A10
Warranty
- Residential Warranty 4-year 800 hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty 4-year 800 hours
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 47TSAAA7A10 | MANL:OPER:TRI:ZTX | ||
| MANL:OPER:TRI:ZTX | 769-26505 | Download | |
| MANL:OPER:TRI:ZTX | 769-27018 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26695A | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26927 | Download |
